IP67 Outdoor LED Mesh Display Video Wall

  • IP67 Outdoor LED Mesh Display Video Wall
  • IP67 Outdoor LED Mesh Display Video Wall
  • IP67 Outdoor LED Mesh Display Video Wall

IP67 Outdoor LED Mesh Display Video Wall

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Square Meter
    Delivery Time: 30 Days
    Packaging: Wooden Crate/Road case/Flight case
    Productivity: 6000m²/month
    Brand: Bako Vision
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 6000m²/month
    Certificate: CCC,FCC,ETL,CE,EMC,RoHS
    HS Code: 8528591090
    Port: Shenzhen,Guangzhou

Product Description


Key benefit: Bako Vision Mesh Curtain LED Display has outstanding features of Lightweight,Super thin,Transparent,Suitable for use both indoors and outdoors,High refresh rate,Easy to set up and tear down.


curtain mesh LED display panel wall


Discription:


1.With a design that features excellent lightweight, super thinness and transparency, Bako Vision Mesh Curtain LED Display panels do provide a total solution that can meet the demands of rental business, including concerts, movies, TV sets and outdoor events.

2.This design can save your time in setting up and tearing down, also labor costs and transportation costs. High quality SMDs technology, and unique hardware can provide fantastic video performance.

3.Fully waterproof at the front and rear, these panels are very suitable for both outdoor and indoor use.

4.Mesh Curtain LED Display will become more and more popular in future, and it can be a big help to your business.


Specifications:

BG-2525

BG-2535

BG-2550

BG-31.25

BG-3150

Physical Pitch

25mm

25mm(H),

35mm(V)

25mm(H),

50mm(V)

31.25mm

31.25mm(H),

50mm(V)

Pixel Configuration

1R1G1B

Pixel Density

1,600pixels/m²

1,120 pixels/m²

800 pixels/m²

1,024 pixels/m²

pixels/m²

Unit Size(W*H)(mm)

1500*250

Panel Dimensions(mm)

60*10

60*7

60*5

48*8

48*5

Panel Material

Aluminium

Weight

15kg/m²

10.6kg/m²

8.5kg/m²

15kg/m²

9.6kg/m²

Processing

14-16bit

Colour Number

281 trillion

Contrast Ratio

2000:1

Average Power Consumption

150W/m²

115W/m²

85W/m²

107W/m²

67W/m²

Max. Power Consumption

450W/m²

345W/m²

255W/m²

329W/m²

200W/m²

Operating Temp/Humidity

-30-60/

10%-90%

Storage Temp/Humidity

-40-85/

10%-95%

Refresh Rate

3840Hz

Brightness

7500 nits

6500 nits

5000 nits

6500 nits

4000 nits

Horizontal Viewing Angle

120°

Vertical Viewing Angle

60°

Expected Lifetime

100,000Hrs

IP Rating

IP67

Servicing

Front/Rear

Certification

CCC,CE,ETL,

FCC,TUV

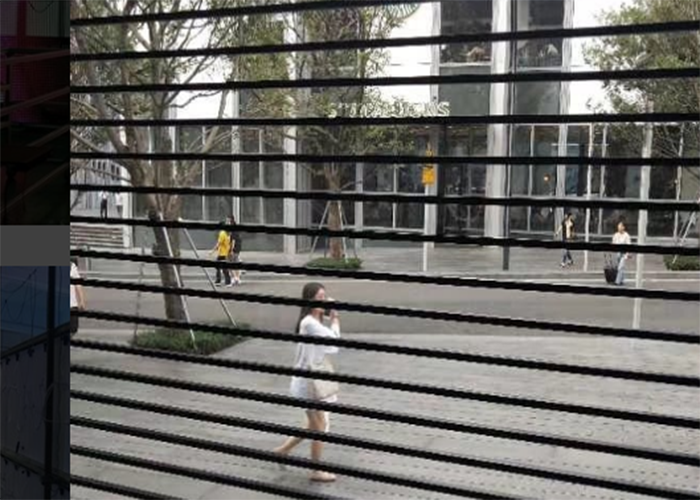

What is Mesh LED Display?


Both outdoor and indoor mesh LED screen versions incorporates the same ease of use, installation, and application. The video mesh PCB is encapsulated in a silicon based gel and the PCB holder and signal integration system is comprised of injection molded plastics to ensure a water repelling property. The outdoor LED video mesh screen is controllable via LED Vision PC Software. With software and control hardware you can control independently multiple outdoor LED Video Mesh Screens with the same or different content simultaneously from one PC.


Mesh led display is a special kind of advertising screens and generally used for building decoration. The screen body is very light; meanwhile, the unit and masks are given special treatment, which ensure easy transportation and installation.


Application of Mesh LED Display


With wide applications, mesh LED display often can be seen in the entertainment places with many people, just like a large TV, and can also be used for companies and private to do any kinds of advertisement.

LED mesh panel display

mesh led display video wal
